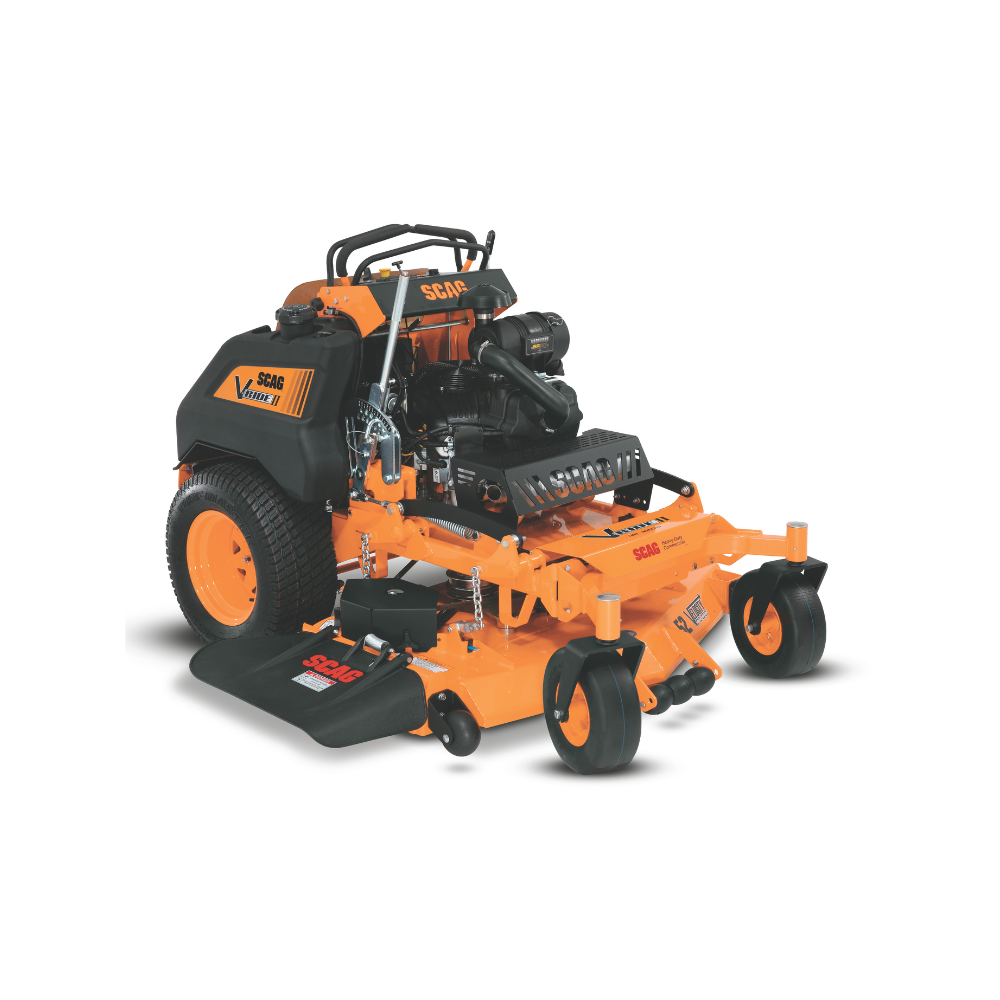

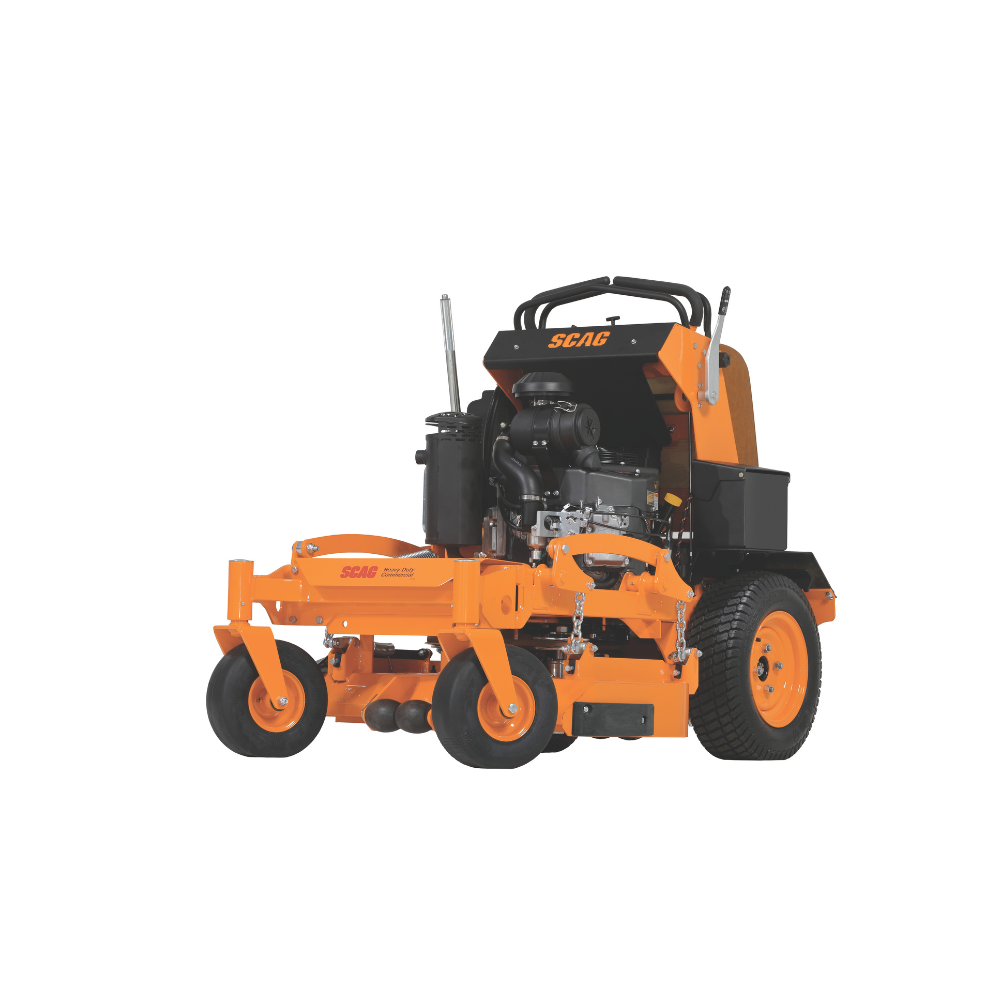

SCAG V RIDE II SVRII-32A-16FX

V-RIDE II SERIES STAND ON MOWER, POWERED BY A 16 HP KAWASAKI FX SERIES ENGINE, 32" DECK WIDTH. UP TO 1.5 ACRES / HOUR

General
Total Fuel Capacity    5 gallons (32″)

6.75 gallons (36″)

8 gallons (48″, 52″, and 61″)
Drive Tires    20″ x 6.5″-10″ (32″)

20″ x 8″-10″ (36″)

24″ x 9.5″-12″ (48″ and 52″)

24″ x 12″-12″ (61″)
Caster Tires    11″ x 4″-5″ (32″ and 36″)

13″ x 5″-6″ (48″ and 52″)

13″ x 6.5″-6″ (61″)
Seat    Extra-large comfort cushion
Drive System
Drive System Type    Dual Pump and Motor
Pumps    Hydro-Gear 10 cc (32″ and 36″)

Hydro-Gear 12 cc (48″, 52″, and 61″)
Motors    Parker 12 ci (32″ and 36″)

Parker 14 ci (48″, 52″ and 61″)
Forward Ground Speed    8.5 mph (32″ and 36″)

10.5 mph (48″, 52″ and 61″)
Reverse Ground Speed    5 mph
Parking Brake    Hand lever
Deck
Cutting Widths    32″, 36″, 48″, 52″ and 61″
Type    Advantage (32″ and 36″)

Velocity Plus™ (48″, 52″, and 61″)
Cutting Height    1.5″ to 4.5″ in .25″ increments
Deck Lift    Hand lever
Construction    Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles.

32″ model features dual-plate.
Spindles    Cast-iron housing with tapered roller bearings.
Blade Engagement    Ogura GT2.5 (150 ft lb) – (32″, 36″, 48″ and 52″)

Ogura GT3.5 (250 ft lb) – (61″)

Adjustable air-gap for extended life.
