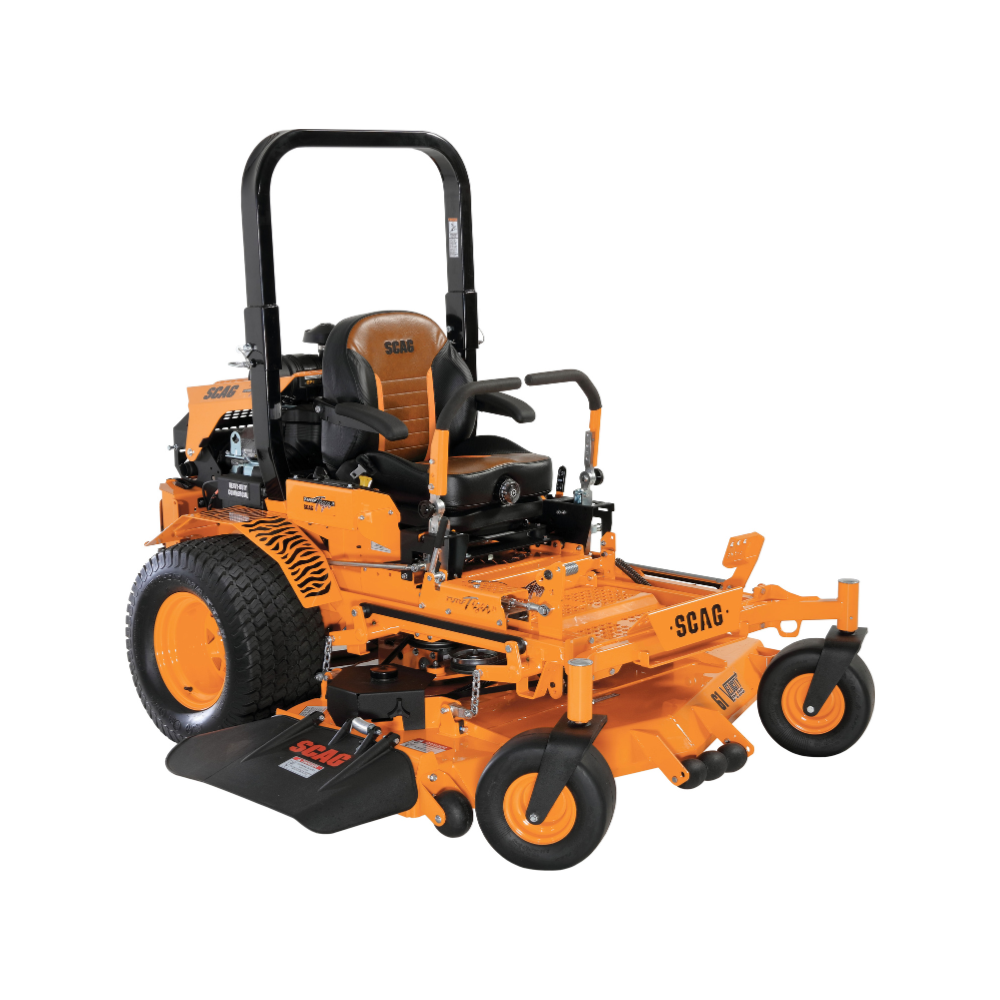

SCAG TURF TIGER II STTII-61V-33BV

TURF TIGER II SERIES ZERO TURN RIDER MOWER, POWERED BY A 33 HP BRIGGS & STRATTON VANGUARD BIG BLOCK ENGINE, 61" DECK WIDTH. UP TO 2.9 ACRES / HOUR

General
Total Fuel Capacity    12 gallons (Gas/Diesel)

33.5 lb (LP)
Drive Tires    26″ x 12″-12″ (61″ and 72″)

26″ x 9.5″-12″ (52″)
Caster Tires    13″ x 6.5″-6″
Seat    4-point iso-mounted torsion-spring suspension seat
Drive System
Drive System Type    Dual Pump and Motor
Pumps    Hydro-Gear: 16 cc
Motors    Parker: 18 ci
Forward Ground Speed    12 mph (Gas/LP)

10 mph (Diesel)
Reverse Ground Speed    6 mph
Parking Brake    Adjustable foot-operated pedal. AUSCO disc brakes.

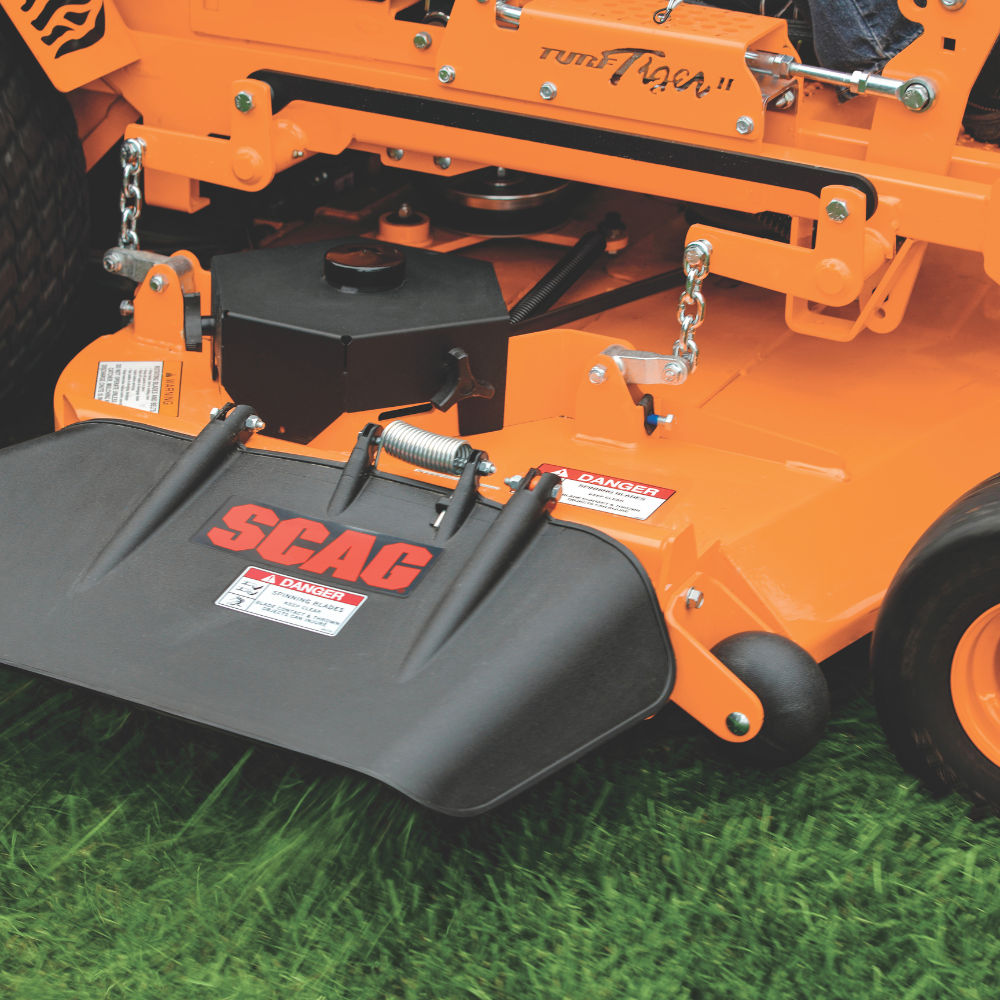

Deck
Cutting Widths    52″, 61″ and 72″
Type    Velocity Plus™
Cutting Height    1.5″ to 6″ in .25″ increments
Deck Lift    Adjustable foot-operated pedal
Construction    Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles.
Spindles    Cast-iron housing with tapered roller bearings.
Blade Engagement    Ogura GT3.5 (300 ft lb)

Ogura GT5 (350 ft lb) (Briggs Models)

Adjustable air-gap for extended life.
