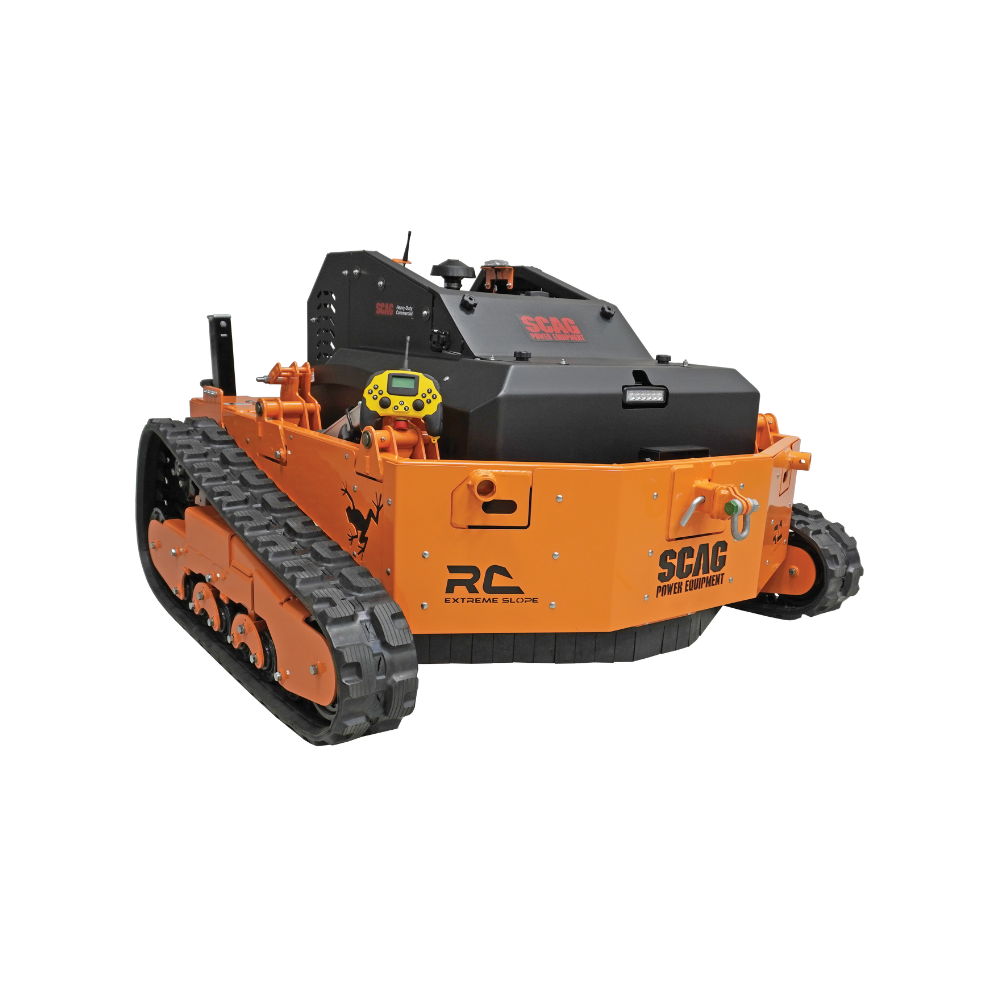

SCAG RC EXTREME SLOPE MOWER SRC-52D-37BV-EFI

HYBRID POWERED GAS /ELECTRIC REMOTE CONTROLLED SLOPE MOWER. 9 KWH TOTAL BATTERY POWER, A 7 KW ALTERNATOR IS POWERED BY A 37 HP VANGUARD BIG BLOCK EFI/ETC ENGINE. 52 " CUTTING WIDTHS. UP TO 2.5 ACRES / HOUR.

Drive System
Drive System    Electric Drive (No PTO)
Type    OMNI
Drive Wheel Motors    OMNI
Productive Speed Range    Up to 3.0 mph

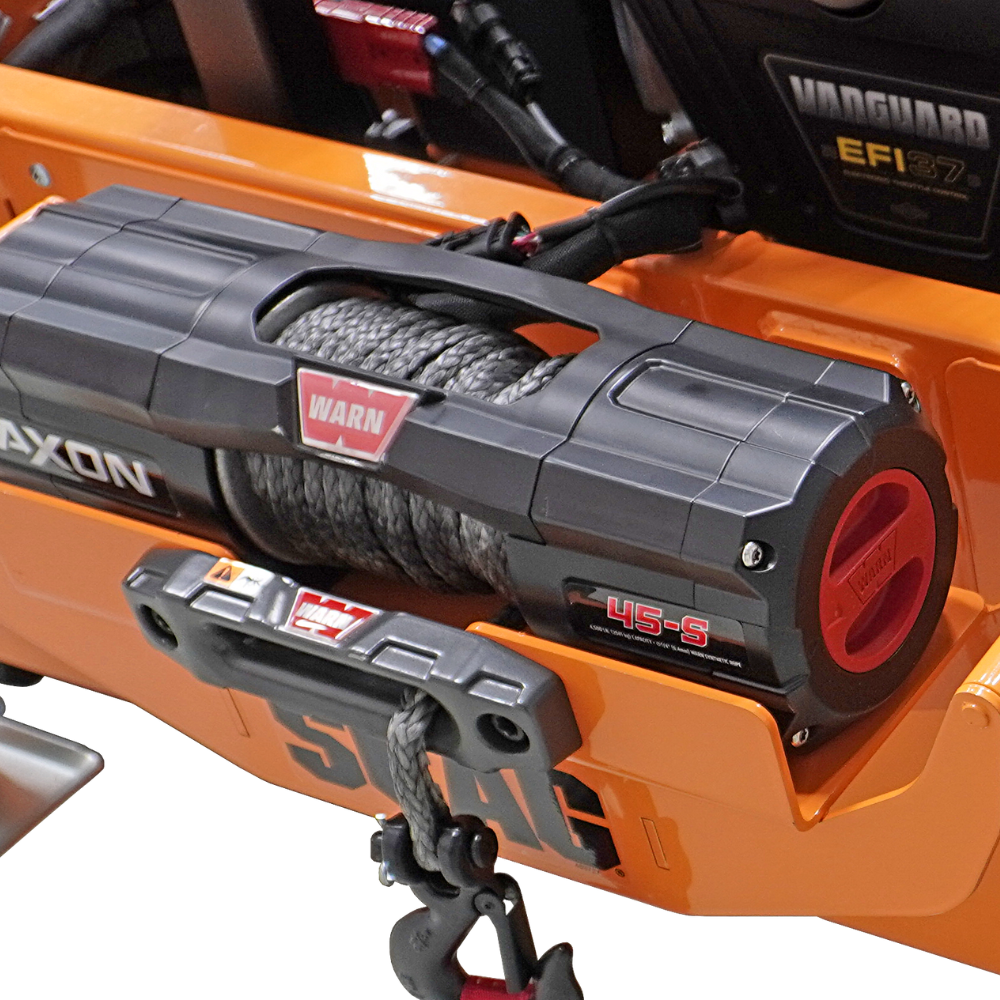

Degree of Slope    45° without winch
Steering/Travel Control    Easy-to-use remote control
Battery
Battery    ALLIANCE I48-3.0
Number of Batteries on Machine    3 (fixed to machine)
Total Battery Wattage    9kWh
Productivity    Batteries power the machine from 100-20% for approximately 1.5hrs after which the alternator generates power using the 37hp Vanguard engine to charge the batteries and run the machine.
Charging
Charge Time – Wall Charger    100% in about 5hrs
Charging Time – Alternator    Charges up to 90% in 5-6hrs via alternator (dependent on cutting conditions)
Remote Control
Signal Range    1000 ft or line of sight (E-Stop on Signal loss)
Remote Battery Life    10 hours
Remote Charge Time    2 hours

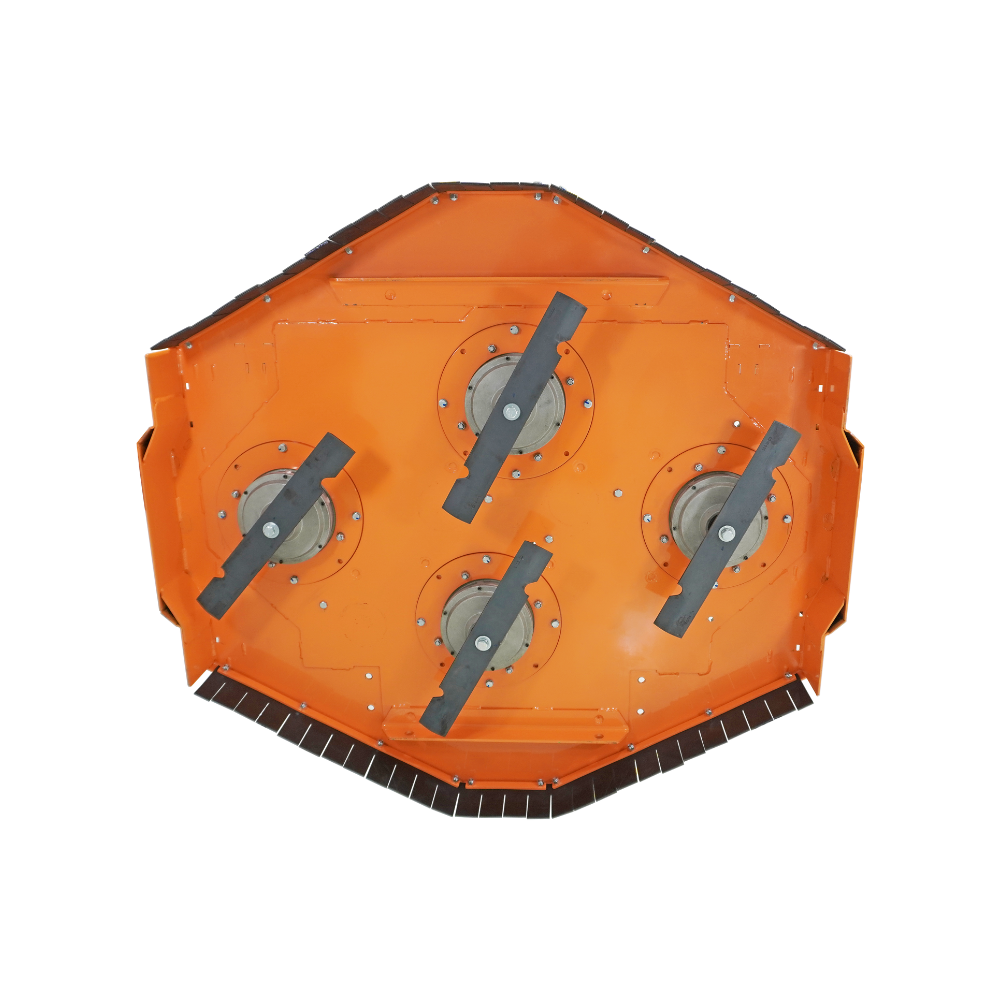

Deck
Cutting Widths    52″
Electric Cutting Height Adjustment    3″ to 12″
Thickness of brush    Clearing heavy brush up to 1.5” in diameter
