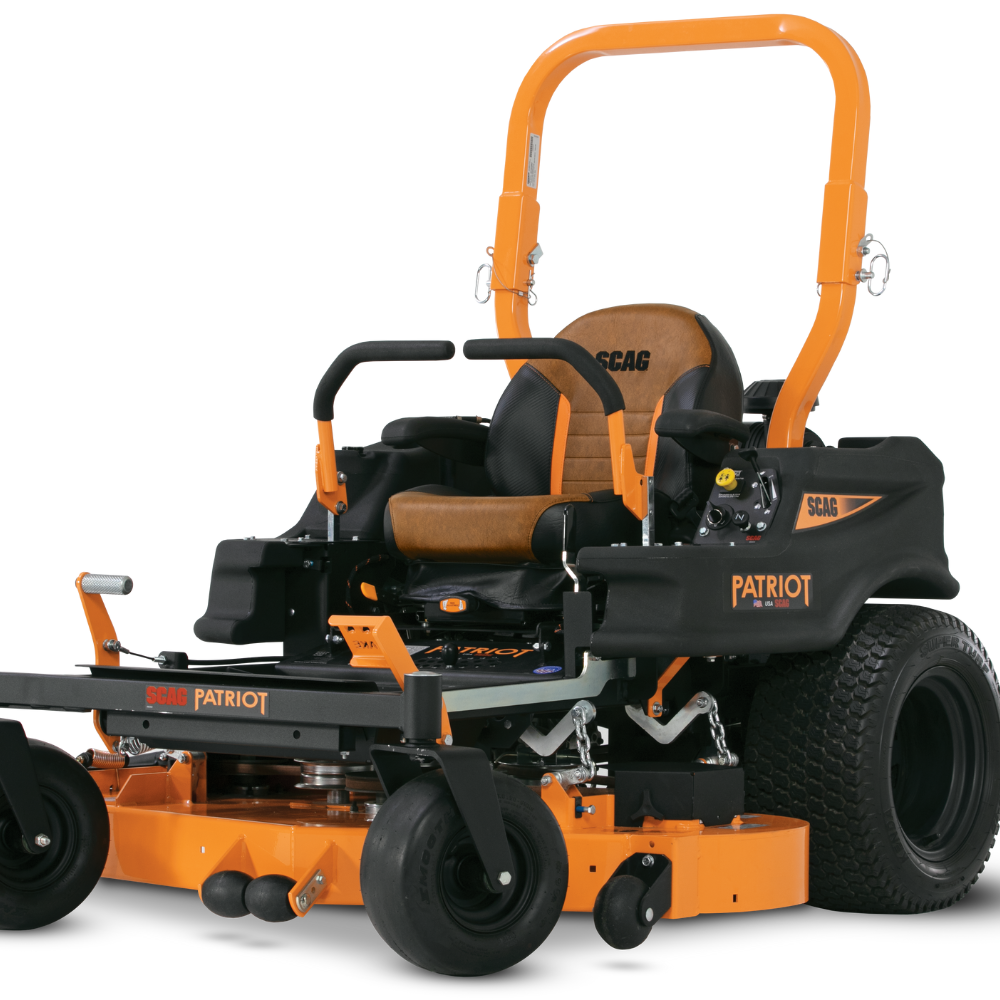

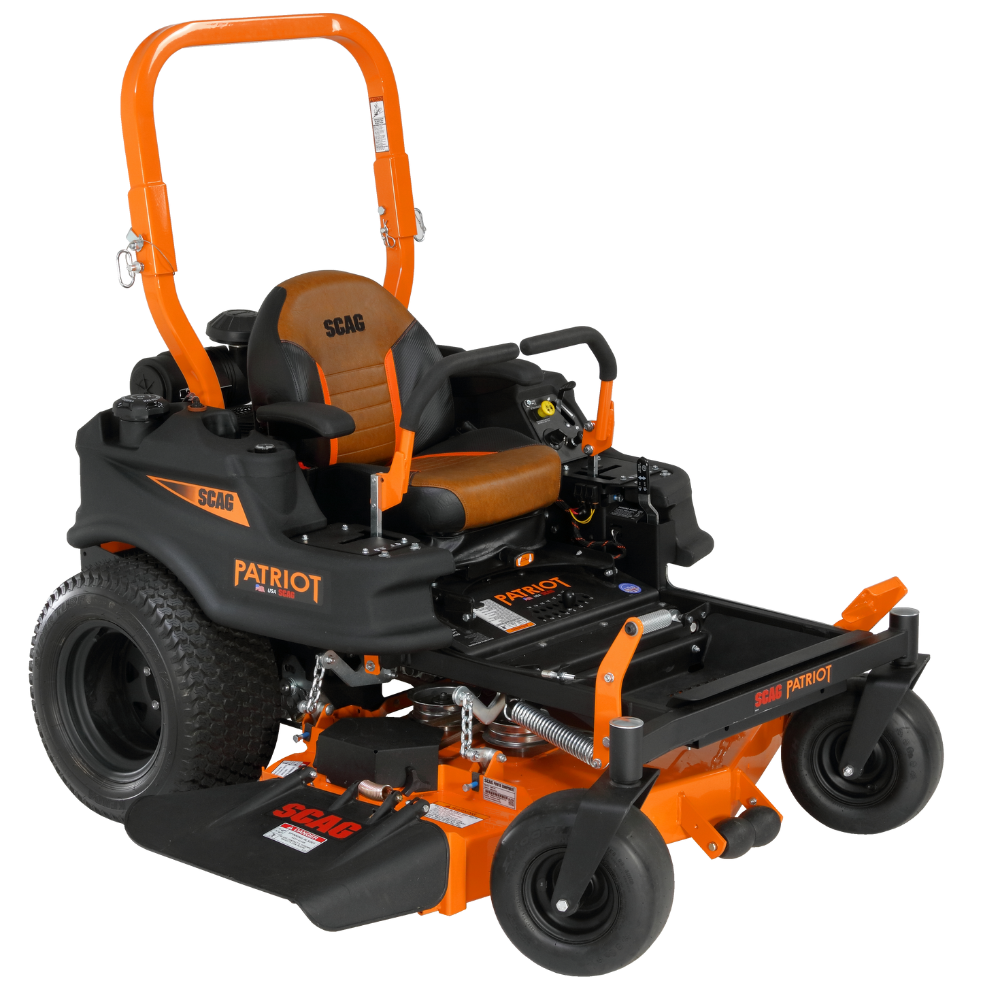

SCAG PATRIOT SPZ-52H-25ZT

PATRIOT SERIES, ZERO TURN RIDER MOWER WITH 25 HP KOHLER CONFIDANT ENGINE AND 52' DECK WIDTH. UP TO 2.5 ACRES / HOUR

General
Total Fuel Capacity    6.5 gallons
Drive Tires    22″ x 10.5″-12″ (52″)

24″ x 12″-12″ (61″)
Caster Tires    13″ x 6.5″-6″
Seat    Torsion-spring suspension seat
Drive System
Drive System Type    Hydro-Gear ZT3100 Transaxle (52″)

Hydro-Gear ZT3400 Transaxle (61″)
Pumps    ZT3100 Internal Pump: 10 cc (52″)

ZT3400 Internal Pump: 12 cc (61″)
Motors    Internal Motor: 16 cc
Forward Ground Speed    8.5 mph (52″)

10 mph (61″)
Reverse Ground Speed    5 mph
Parking Brake    Foot-operated pedal
Cutting Widths    52″ and 61″
Cutting Height    1.5″ to 5″ in .25″ increments
Deck
Spindles    Aluminum housing with sealed ball bearings.
Construction    Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Deck Lift    Foot-operated pedal
Type    Hero Cutter Deck
Blade Engagement    Ogura GT2 (108 ft lb)

Adjustable air-gap for extended life.
