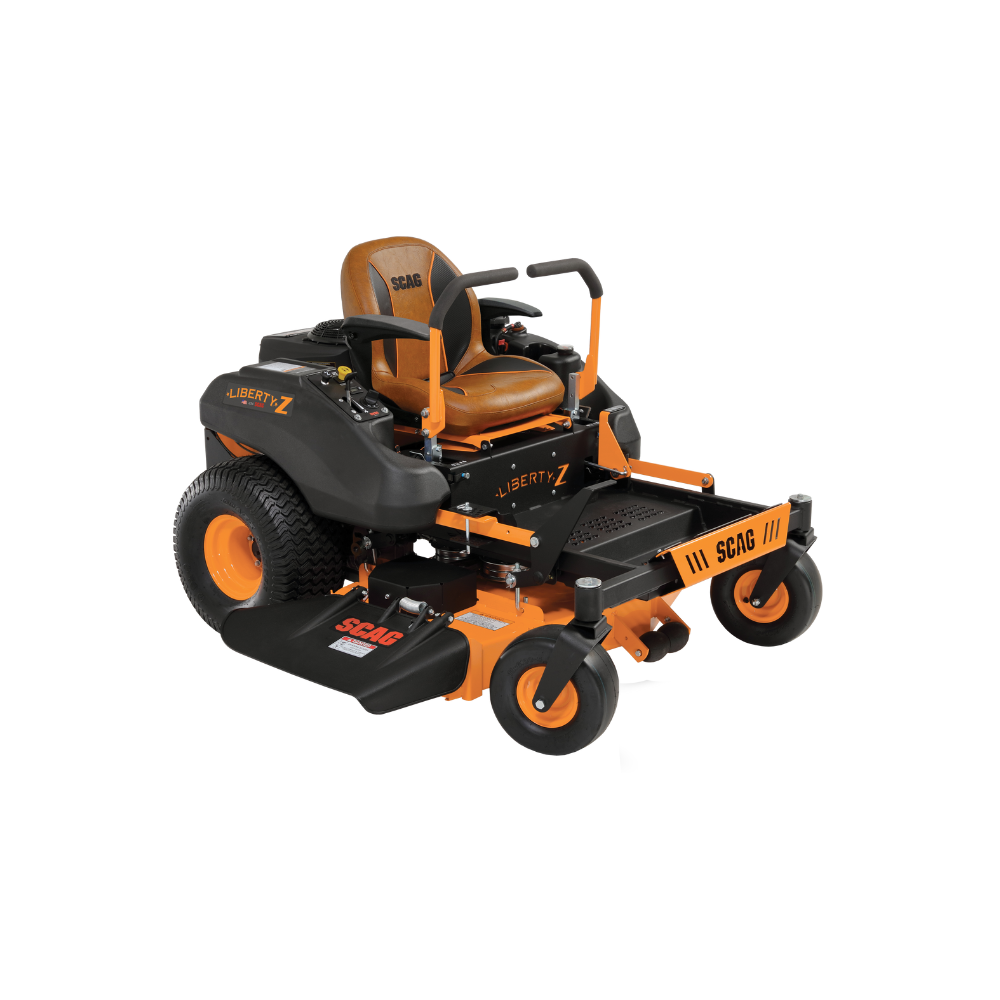

SCAG LIBERTY Z SZL-36H-20KT

LIBERTY Z SERIES, ZERO TURN MOWER WITH 26 HP 747 CC KOHLER ENGINE AND  36" DECK. UP TO 1.8 ACRES / HOUR

General
Total Fuel Capacity    3.5 gallons (36″ and 42″)

5.5 gallons (48″, 52″ and 61″)
Drive Tires    20″ x 8″-10″ (36″)

20″ x 10″-8″ (42″, 48″ and 52″)

20″ x 10″-10″ (61″)
Caster Tires    11″ x 4″-5″ (36″ and 42″)

11″ x 6″-5″ (48″, 52″ and 61″)
Seat    Padded with arm rests, adjustment forward and back (tools required)

(no armrests on 36″ and 42″ models)
Drive System
Drive System Type    36″ and 42″ models: Hydro-Gear ZT-2800 Transaxle

48″ and 52″ models: Tuff Torq TZ450 Transaxle

61″ models: Hydro-Gear ZT3100 Transaxle
Pumps    Internal Pump: 10 cc
Motors    Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
Forward Ground Speed    7 mph
Reverse Ground Speed    5 mph
Parking Brake    Hand lever
Deck
Cutting Widths    36″, 42″, 48″, 52″ and 61″
Cutting Height    1.5″ to 4.5″ in .25″ increments
Spindles    Aluminum housing with sealed ball bearings.
Construction    Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Deck Lift    Foot-operated pedal
Type    Heavy-Duty Hero Cutter Deck
Blade Engagement    Ogura GT1 (74 ft lb) – (36″, 42″, 48″ and 52″)

Ogura GT2 (108 ft lb) – (61″)

Adjustable air-gap for extended life.
