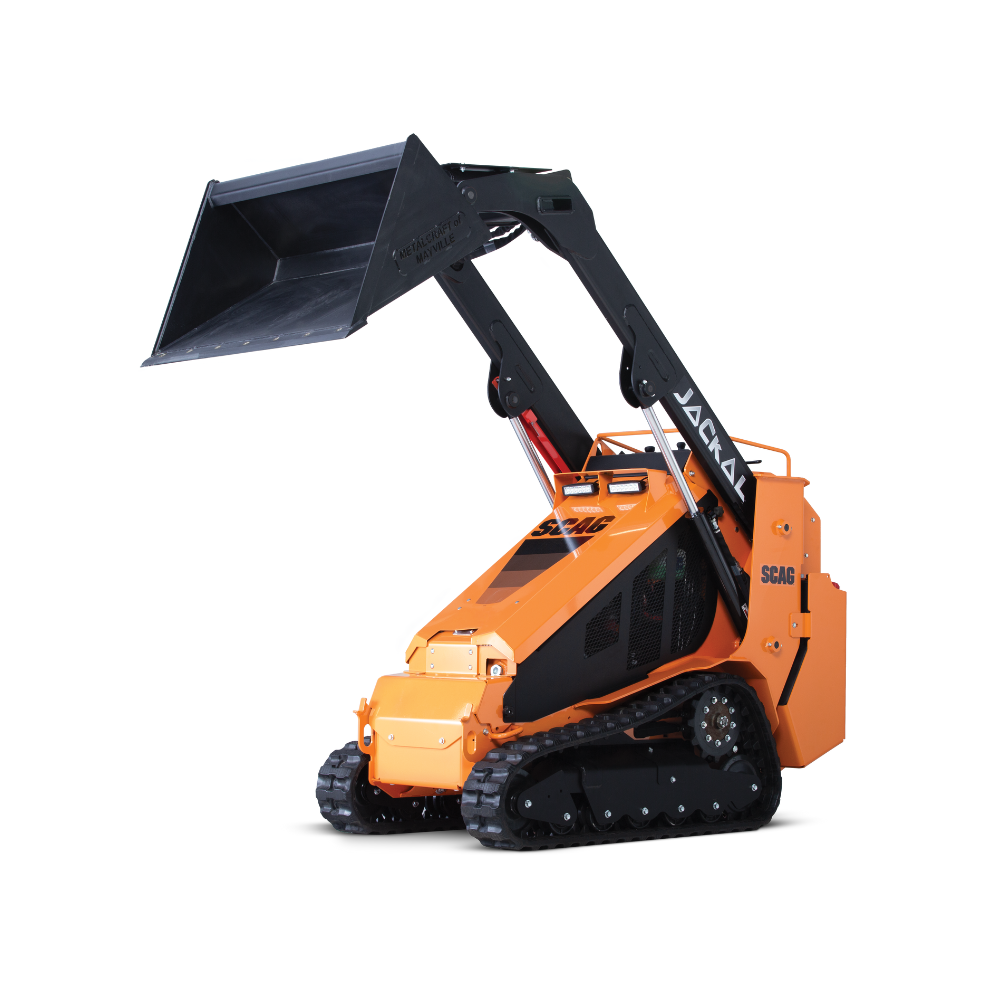

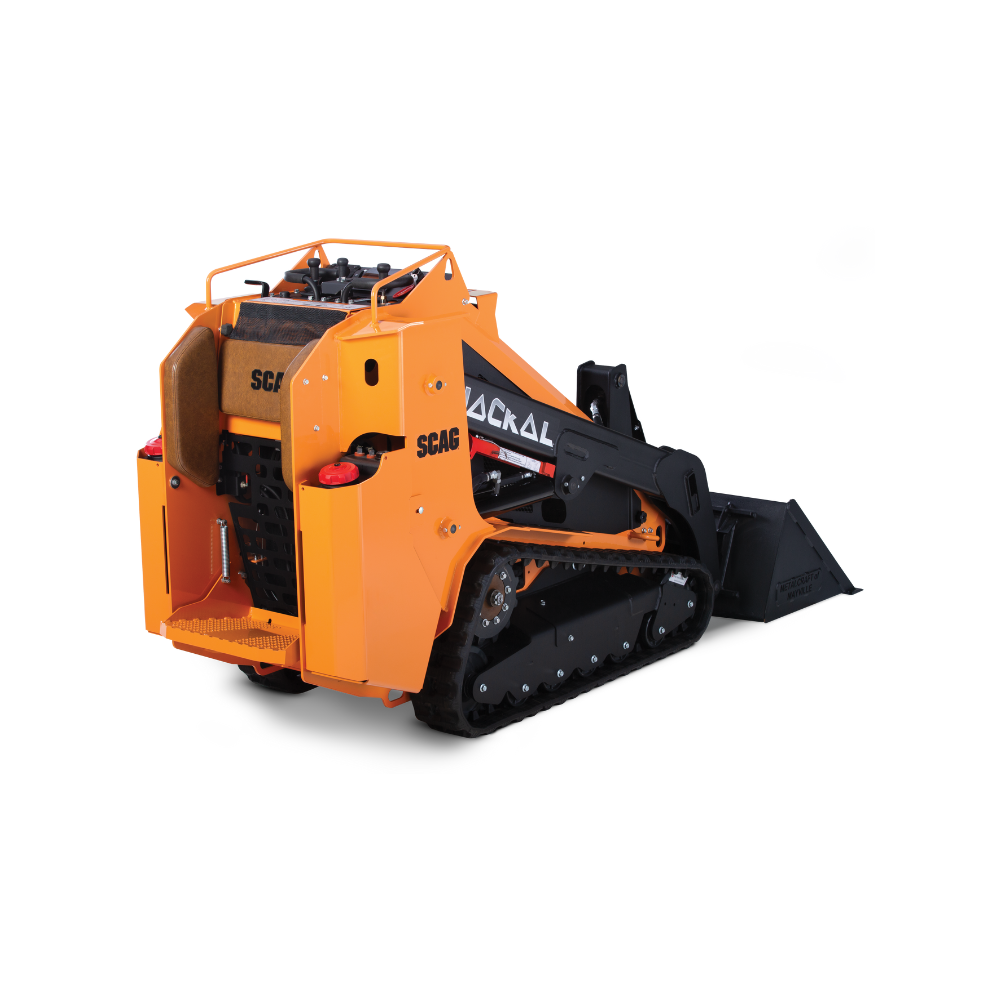

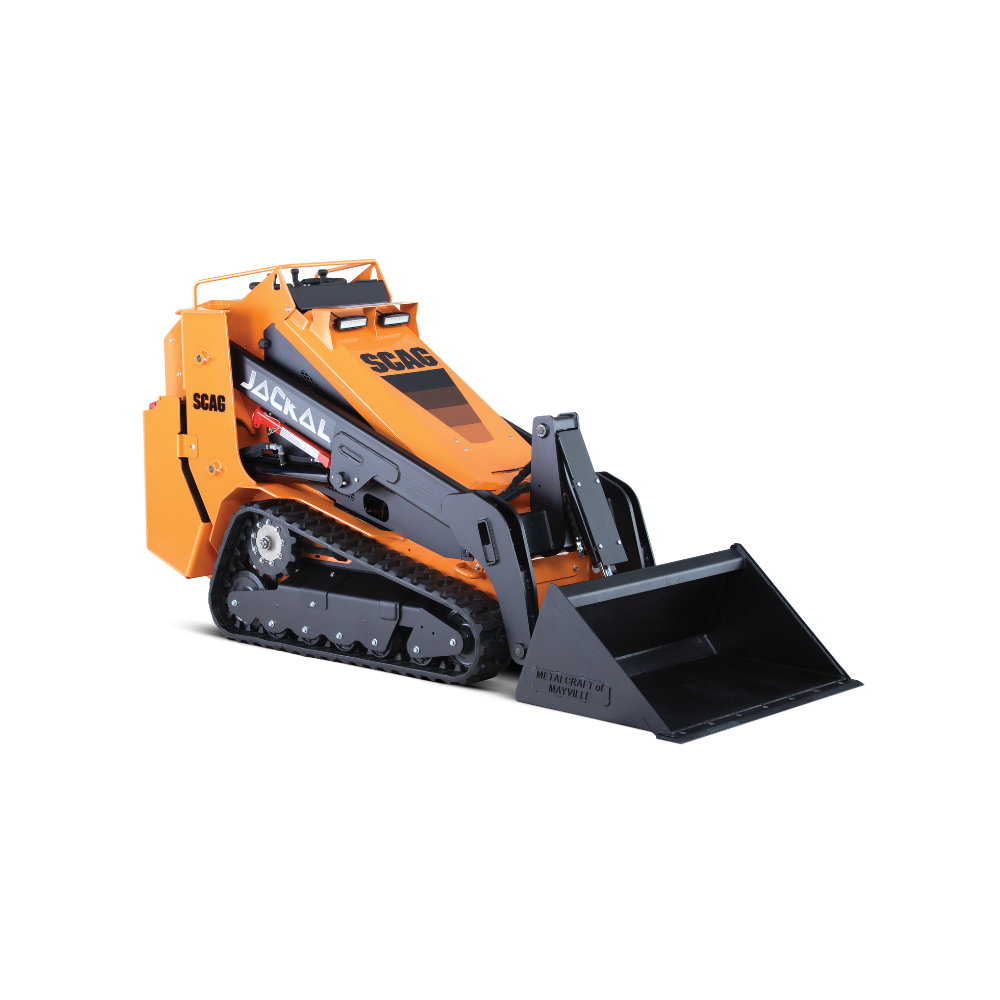

SCAG JACKAL SJ1125-N-34-25KBD

STAND ON MINI TRACK LOADER. 24.8 HP KUBOTA D1305-E4B ENGINE AND 35.5 TRACKING WIDTH

Chassis
Fuel Tank    12-gallon total capacity (45.4 L); dual 6-gallon tanks
Ground Clearance    7.5″
Drive System
Type    Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive track
Track    Dual 7″-wide, reinforced tracks included; 5.5 psi of ground pressure. Easy-change capability between narrow (7″) and optional wide (9″) tracks.
Hydro Pumps    Two 18cc pumps with dump valves for movement without running engine; one cooling fan
Drive Wheel Motors    Two Parker Torqmotor TGK series 360 cc LSHT cast-iron high torque wheel motors
Auxiliary Hydraulic System    Up to 15 GPM; up to 3,000 psi
Hydro Reservoir    12-gallon capacity cooling reservoir; uses MV68 fluid and 10 micron filter
Steering/Travel Control    Easy-to-use joystick drive control lever via pilot servo
Deep Valves    Allows for movement without engine running
Parking Brake    Mechanical sprocket lock
Safety Group    Footplate-actuated operator presence system interlock to engine kill
Forward Speed Range    0 up to 4.0 mph
Lift System/Loader Arms
Type    Hydraulic-powered radial lift loader arms with universal-type mounting system to accept a wide variety of buckets and other attachments
Control    Easy-to-use joystick control lever
Lift Capacity    1,125 lb maximum
Tip Capacity    3,142 lb maximum
Bucket Width    34″ inside width; 36″ cutting width
Hinge Pin Height    83″
Maximum Bucket Angle Rollback    25°
Bucket Dump Angle    40°
