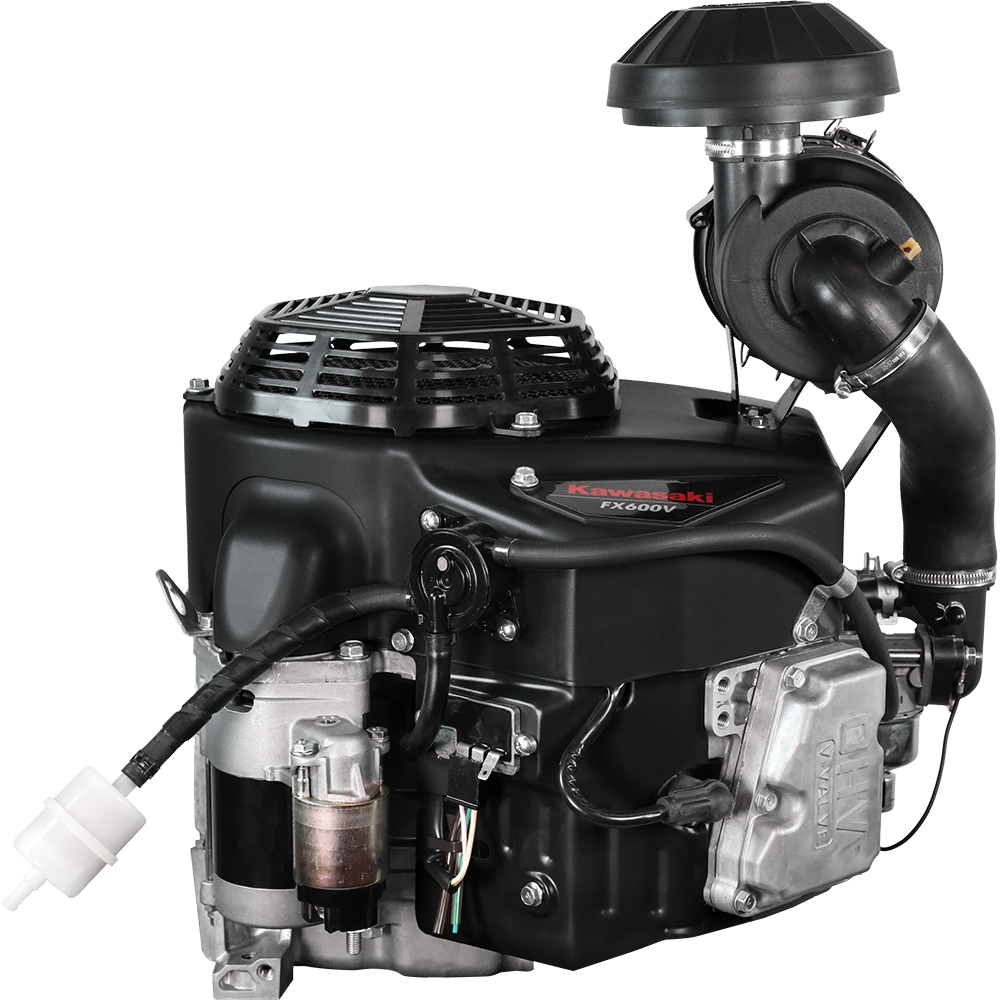

KAWASAKI LAWN MOWER ENGINE FX 600V-FS01-S

4 STROKE AIR COOLED V-TWIN GASOLINE ENGINE 19.0 HP / 603 CC / 2 CYLINDERS.

Can Replace: FS600V-_S25-S, FS600V-_S01-S, FS541V-_S27-S, FS541V-_S01-S, FS481V-_S26-S, FS481V-_S24-S,
FS481V-_S23-S, FS481V-_S06-S, FS481V-_S01-S
 Commonly used on: Bobcat®, Exmark, Gravely, Husqvarna®, Hustler, Scag, Toro, Wright

FX600V Specifications
Displacement
603 cc (36.8 cu. in.)

Number of Cylinders
2

Bore x Stroke
2.9 x 2.8 in. (73 x 72mm)

Compression Ratio
8.1:1

Oil Capacity w/filter
1.8 U.S. qt (1.7 liters)

Maximum Power
19.0 hp (14.2 kW) at 3,600 RPM

Maximum Torque
32.5 ft-lbs (44.0 N·m) at 2,200 RPM

Dry Weight
89.7 lbs (40.7 kgs)

Overhead v-valve
90° V-twin
Pressurized lubrication system
Recoil start
Automatic compression release
Internally vented carburetor
Rotating grass chopper screen
Multi-Stage canister air filter
Cast-iron cylinder liners
Metal engine cover with integrated clean out ports
Heavy duty shift-type starter
