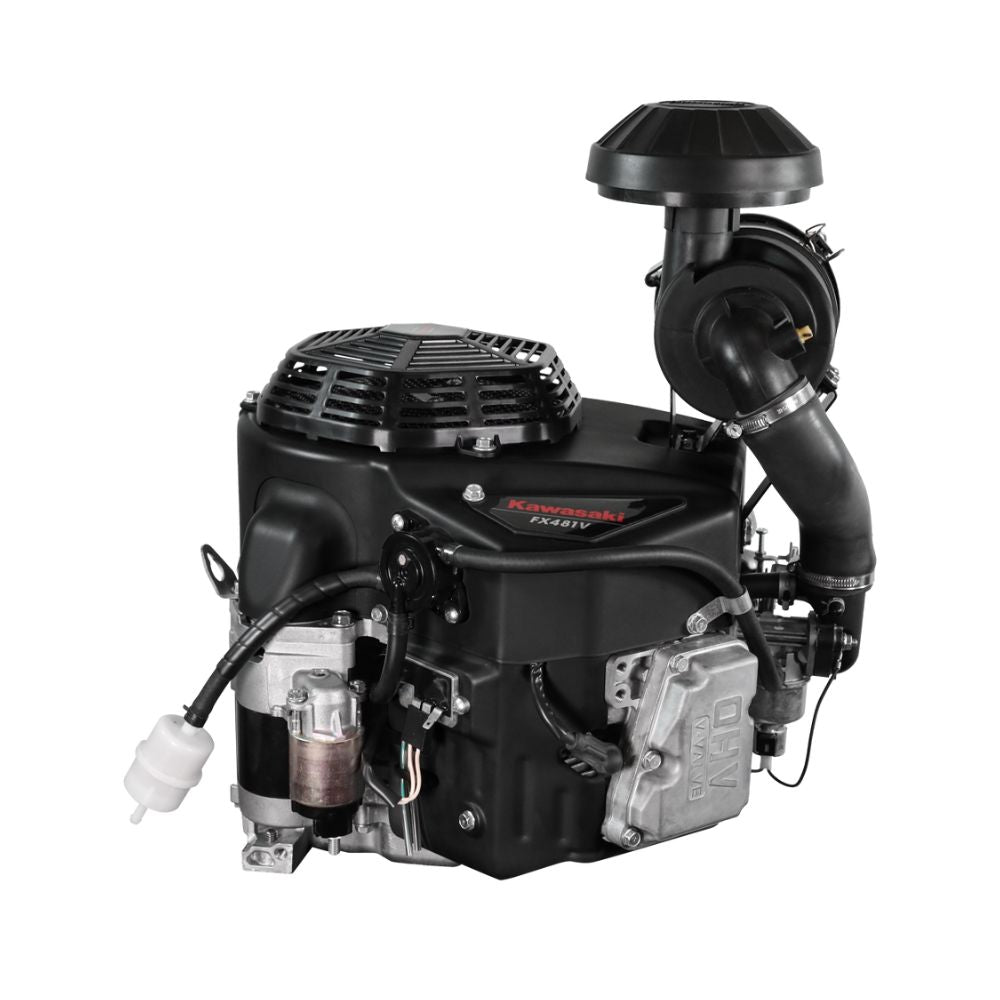

KAWASAKI LAWN MOWER ENGINE FX 481V

4 STROKE AIR COOLED V-TWIN GASOLINE ENGINE 15.5 HP / 603 CC/ 2 CYLINDERS

FX481V Specifications
Displacement
603 cc (36.8 cu. in.)

Number of Cylinders
2

Bore x Stroke
2.9 x 2.8 in. (73 x 72mm)

Compression Ratio
8.1:1

Oil Capacity w/filter
1.8 U.S. qt (1.7 liters)

Maximum Power
15.5 hp (11.6 kW) at 3,600 RPM

Maximum Torque
31.7 ft-lbs (42.9 N·m) at 1,800 RPM

Dry Weight
89.7 lbs (40.7 kgs)

Overhead v-valve
90° V-twin
Pressurized lubrication system
Electronic spark ignition
Automatic compression release
Internally vented carburetor
Rotating grass chopper screen
Multi-Stage canister air filter
Cast-iron cylinder liners
Metal engine cover with integrated clean out ports
Heavy duty shift-type starter
